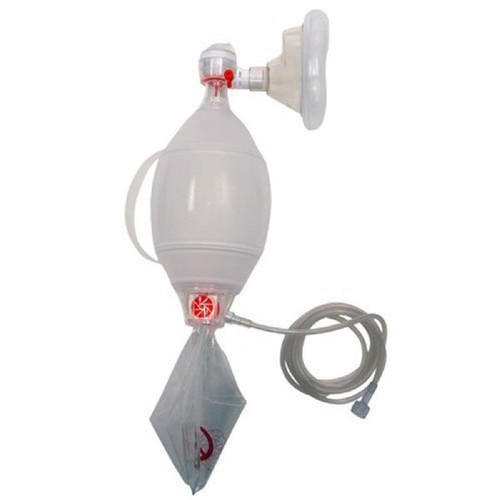

Ambu SPUR II is the only resuscitator that is made from a SEBS material instead of PVC. This classifies Ambu SPUR II as environmentally safe and fully disposable, thus eliminating all risks of cross contamination. Simple is good. But simpler is better. Our unique single-shutter valve has proven its reliability over two decades of emergency and hospital use. The crystal clear valve housing provides an unimpeded view of the valve operation, and the slim design makes it easier to view the mask.
The Ambu SPUR II provides users with exceptional tactile and visual feedback during resuscitation. The bag is highly responsive, with minimal mechanical resistance some even says it's a natural extension of the hand. Our convenient handle makes it easier hold the unit and to ventilate a patient with just one hand if necessary. And our characteristic design provides optimum stroke volume with perfect recoil yet is smaller and lighter than most other disposable units. The Ambu SPUR II also features a unique shape that is small and easy to hold, yet provides optimum stroke volumes with just one hand. The bag itself is thin and responsive and our Safe Grip surface ensures that the Ambu SPUR II can be firmly squeezed.
Features:
Specifications
| Stroke volume: | 150 ml |
| Resuscitator volume: | 220 ml |
| Dimensions (length x diameter) | 168 x 71 mm |
| Weight, incl. reservoir (bag), O2 tube and mask | 140 g |
| Pressure limiting Valve | 4.0 kPa (40 cm H2O |
| Dead space | <6 ml |
| Inspiratory resistance without O2 | Max.0.10 kPa (1.0 cm H2O) at 5 l/min |
| Expiratory resistance | Max.0.10 kPa (1.0 cm H2O) at 5 l/min |
| Bag reservoir volume | 300 ml |
|
Tube reservoir
Length:
Diameter:
Volume:
|
245 mm (10")
22 mm (7/8")
100ml
|
