Spectro2 20 Hand Held Pulse Oximeter

Our Products: Medical Diagnostics > Pulse Oximeters > Pulse Oximeters
SKU: 207-420

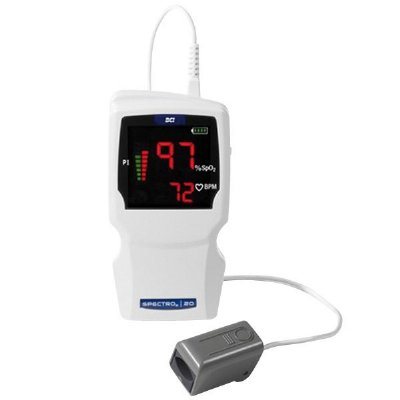

The SPECTRO2™ 20 Pulse Oximeter is an easy-to-use spot-check device that displays SpO2, pulse rate, signal strength, and Pulse amplitude Index (PI).
You can earn 732 Ocelco Cash Reward Points on this product!
Price: $732.38
Spectro2 20 Hand Held Pulse Oximeter
Spectro2 20 Hand Held Pulse Oximeter
Previous Item Previous Item   Next Item Next Item
Product Details

On Backorder Until Further Notice

SPECTRO2 20 Pulse Oximeter

The SPECTRO2 20 Pulse Oximeter is an easy-to-use spot-check device that displays SpO2, pulse rate, signal strength, and Pulse amplitude Index (PI). Utilizing patented BCI Serial Autocorrelation technology, this device responds to challenging environments - including those with the presence of low perfusion or motion. The SPECTRO2 20 Pulse Oximeter aids health care providers in responding to a wide range of patient needs, including higher acuity care and ambulatory situations.

Features:
Patented Serial Autocorrelation technology
Large, bright, easy-to-read LED
Unique on-board cradle to store and protect finger sensor
Multiple power options
Compatible with Docking Station, Attachable Printer, and BCI spot-check sensor
Pulse amplitude Index (PI)
Low battery indicator
Nellcor sensor compatibility
Reliable readings in a wide variety of challenging patient care situations
Low perfusion performance
Motion tolerance
PI (Pulse amplitude Index) Indicator
Helps identify and maintain a good test site
Enables confidence in results
One of the largest displays on the hand-held market
At-a-glance patient assessment
Easy to view from wide angles
50% larger LEDs than comparable hand-held devices
On-board sensor storage cradle
Stores and protects sensor
Reduces damage, minimizing unnecessary replacement costs
Sensor is always ready and available
Versatility with multiple sensors
Compatible with all BCI sensors
New BCI 20-inch Spot-Check Sensor
Minimizes frustrating cable tangles
Quick, easy patient assessments
Nellcor sensor compatibility, Tested with Nellcor DS100A sensor.

Benefits:
Reliable performance during motion such as intra- and inter-hospital transport
Reliable performance under conditions of low perfusion
Comfortable ergonomic design allows easy one-handed operation
Optional printer eliminates possible documentation errors
Stores patient data for transfer to PC for improved efficiency and documentation

Technical Specifications:
DISPLAYS AND INDICATORS
• Keys – ON/OFF button
SpO2 (FUNCTIONAL)
• Range: 0 to 100% (1% increments); display maximum 99%
• Standard Accuracy: Adult / Ped ±2 Arms at 70 - 100%, Neonate1 ±3 Arms at 70 - 100%, Less than 70% unspecified
• Low Perfusion Accuracy: Adult / Ped ±2 Arms at 70 - 100%, Neonate1 ±3 Arms at 70 - 100%, Less than 70% unspecified
• Motion Accuracy2: Adult / Ped ±3 Arms at 70 - 100%, Less than 70% unspecified
• Averaging – 8 beats
PULSE SIGNAL STRENGTH
• Range: 0 to 9 indicator, indicates logarithmic strength of patient pulse
• Display – 9-segment red LED bargraph
PULSE RATE
• Range – 20 - 300 bpm (1 bpm increments)
• Standard Accuracy – ±2 Arms
• Low Perfusion Accuracy: ±3 Arms over 25 - 250 bpm range, Less than 70% unspecified (Pulse amplitude <1%. Tested using industry standard simulator.)
• Averaging – 8 seconds
PULSE AMPLITUDE INDEX
• Range – 0.03% - 20% (0.01% increments)
• Display – 9-segment green/yellow LED bargraph.
POWER REQUIREMENTS
• Battery: 4 "AA" alkaline or custom 2-cell Lithium Ion rechargeable battery pack
• External (from AC Charger) 9V, 3A output; input of 100-240 VAC, 50Hz, 60Hz
• External (from USB) Input: 5V, 500mA max (USB powered source) Output: 9V, 230mA max to oximeter
BATTERY LIFE
• Alkaline Cells Life – Approx. 26 hours of use
• Rechargeable Battery Life: Approx. 31 hours of continuous use (new), Approx. 3 hours typical recharge time
TREND STORAGE
• Parameters: %SpO2, Pulse Rate, Pulse amplitude Index and Relative Time
• Interval – 4 seconds
• Capacity – 144 hours at 4 second intervals
MEMORY
• Stores data for up to 99 patients
ENVIRONMENT
• Operating Temperature: Oximeter and accessories: 0°C to 55°C (32°F to 130°F), Power supply: 0°C to 40°C (32°F to 104°F), Li+ battery charging: 5°C to 45°C (41°F to 113°F)
• Relative Humidity: Operating: 15 to 95% (non-condensing), Storage: 10 to 95% (non-condensing)
• Altitude – Up to 10,000 ft.
• Shock and Vibration – Transport per ISO 9919
PHYSICAL
• Dimensions – 3.3W x 6.1H x 1.7D in
• Weight – 340g including four "AA" batteries
STANDARDS
EN60601-1, EN60601-1-2, ISO 9919

Optional Protective Rubber Glove: 207-419-CL
