Spectro2 30 Hand Held Pulse Oximeter

Our Products: Medical Diagnostics > Pulse Oximeters > Pulse Oximeters
SKU: 207-417
The SPECTRO2™ 30 Pulse Oximeter offers dependable results, plus the flexibility to perform in virtually any clinical setting.
You can earn 908 Ocelco Cash Reward Points on this product!
Price: $908.35
Spectro2 30 Hand Held Pulse Oximeter
Spectro2 30 Hand Held Pulse Oximeter
Previous Item Previous Item   Next Item Next Item
Product Details

On Backorder Until Further Notice

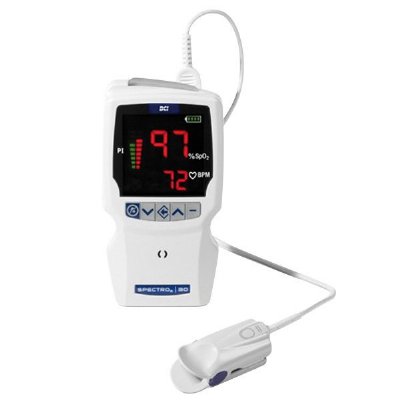

SPECTRO2 30 Pulse Oximeter

The SPECTRO2 30 Pulse Oximeter offers dependable results, plus the flexibility to perform in virtually any clinical setting. This continuous monitoring device displays SpO2, pulse rate, signal strength, and Pulse amplitude Index (PI). Utilizing patented BCI Serial Autocorrelation technology, the SPECTRO2 30 Pulse Oximeter can be trusted to deliver reliable readings on a wide range of patients. It monitors the efficacy of respiratory treatments in the most challenging situations, even under conditions of low perfusion or during motion. The SPECTRO2 30 Pulse Oximeter has multiple operating modes, audible and visual alarms, and remote alarm capability that alerts for potential clinical intervention.

Clinical Settings:
At risk patients
Sleep screening
Post anesthesia recovery
Analgesics monitoring
With its unique features and optional accessories, the SPECTRO2 30 oximeter can be customized to address the needs in most clinical settings.

Features:
Dependable readings for a wide range of patients in challenging situations
Low perfusion performance and motion tolerance
PI (Pulse amplitude Index) Indicator
Helps identify and maintain a good test site
Enables confidence in results Versatility with multiple sensors
Compatible with all BCI sensors
Nellcor sensor compatibility1
Visual, audible and remote alarms
Alerts for potential clinical intervention
Remote alarm operates through nurse call system
One of the largest displays on the hand-held market
At-a-glance patient assessment
Easy to view from wide angles
50% larger LEDs than comparable hand-held devices
On-board sensor storage cradle
Stores and protects sensor when not in use
Programmable modes
Clinician, home and sleep modes

Technical Specifications:
DISPLAYS AND INDICATORS
• Keys: 5-button keypad for menu navigation and device configuration; ON/OFF button
SpO2 (FUNCTIONAL)
• Range: 0 to 100% (1% increments); display maximum 99%
• Standard Accuracy: Adult / Ped ±2 Arms at 70 - 100%, Neonate1 ±3 Arms at 70 - 100%, Less than 70% unspecified
• Low Perfusion Accuracy: Adult / Ped ±2 Arms at 70 - 100%, Neonate1 ±3 Arms at 70 - 100%, Less than 70% unspecified
• Motion Accuracy2: Adult / Ped ±3 Arms at 70 - 100%, Less than 70% unspecified
• Averaging: 2 (Sleep Mode only); 4, 8, or 16 pulses (default = 8)
• Alarms: High: off and 99 - 51, 1 step (%SpO2) increments, Low: 50 - 99, 1 step (%SpO2) increments
PULSE SIGNAL STRENGTH
• Range: 0 to 9 indicator, indicates logarithmic strength ofpatient pulse
• Display – 9-segment red LED bargraph
PULSE RATE
• Range – 20 - 300 bpm (1 bpm increments)
• Standard Accuracy – ±2 Arms
• Low Perfusion Accuracy: ±3 Arms over 25 - 250 bpm range, Less than 70% unspecified (Pulse amplitude <1%. Tested using industry standard simulator.)
• Averaging: 8 or 16 seconds (default = 8); Sleep Mode = 8
• Alarms: High: 300 - 21 bpm in 1 bpm increments, Low: 20 - 299 bpm in 1 bpm increments
PULSE AMPLITUDE INDEX
• Range – 0.03% - 20% (0.01% increments)
• Display – 9-segment green/yellow LED bargraph
POWER REQUIREMENTS
• Battery: 4 "AA" alkaline or custom 2-cell Lithium Ion rechargeable battery pack
• External (from mains) 9V, 3A output; input of 100-240 VAC, 50Hz, 60Hz
• External (from USB) Input: 5V, 500mA max (USB powered source) Output: 9V, 230mA max to oximeter
BATTERY LIFE
• Alkaline Cells Life: Approx. 17 hours of continuous use
• Rechargeable Battery Life: Approx. 30 hours of continuous use (new); Approx. 3 hours typical recharge time
MEMORY
• Stores data for up to 99 patients
TREND STORAGE
• Parameters: %SpO2, Pulse Rate, Pulse amplitude Index and absolute time from RTC
• Interval: Selectable from 2 to 30 seconds in 1 second intervals (2, 3, 4, 5,… 30)
• Capacity: 72 hours of storage at 2 second intervals
• External Connectors: Oximeter Sensor DB-9 Connector; Custom interconnect allowing connection for either USB communications, AC Mains Power input, or dock connection with or without printer
ENVIRONMENT
• Operating Temperature: Oximeter and accessories: 0°C to 55°C (32°F to 130°F); Power supply: 0°C to 40°C (32°F to 104°F); Li+ battery charging: 5°C to 45°C (41°F to 113°F)
• Relative Humidity: Operating: 15 to 95% (non-condensing); Storage: 10 to 95% (non-condensing)
• Altitude – Up to 10,000 ft.
• Shock and Vibration – Transport per ISO 9919
PHYSICAL
• Dimensions – 3.3W x 6.1H x 1.7D in
• Weight – 340g including four "AA" batteries
STANDARDS
EN60601-1, EN60601-1-2, ISO 9919

Optional Protective Rubber Glove: 207-419-CL
